Asymmetric chopping for improved IM3 | A dead-end research topic?

In my prior post, I discussed the use of “chopping” (or pre- and post-mixing) to improve the IM2 of RF/analog circuits. New readers should go back and read that post in order to understand the nomenclature and variable names in this post.

Lately, I’ve been considering whether any similar (but different) technique can be used to improve IM3. I went through a few thought experiments and eventually concluded that it couldn’t be done. Nonetheless, I was quite proud of the journey and thought it was worth sharing. I also hope that someone else will use the ideas presented here to come up with something better. (This hope is true of everything I publish here.)

In short, it’s good to celebrate your achievements and document your failures. This post is a case of the latter.


Deviating from my prior post, I will not bother to break down the circuit into two sides of a fully-differential circuit. In the case of IM3, there is no difference between a single-ended and a fully-differential circuit (at least not mathematically). So, I’ll just assume that everything is fully differential (without loss of generality).

Let’s consider the IM3 component from our chopping system presented in the previous post:

y = a*p*x + b*x^2 + c*x^3

This represents the usual polynomial model (up to the 3rd order) of a circuit. Let’s now consider how our IM2 chopping system does with respect to IM3:

y = a * p * x + b * p^2 * x^2 + c * p^3 * x^3

hat y = a * p^2 * x + b * p^3 * x^2 + c * p^4* x^3

In our conventional IM2-chopping system, p in +- 1. So, this means that the IM3 term c*p^4*x^3 = c*x^3–that is, this symmetric chopping does absolutely nothing for IM3. In fact, any sequence p which obeys p in {-1,+1 } won’t work, because p^4 will equal 1.

Symmetric vs Asymmetric

I’m coining the term symmetric chopping and asymmetric chopping by borrowing phrases from cryptogrophy. A symmetric cipher is one that uses the same key to both encrypt and decrypt. Similarly, I’m defining a symmetric chopper as one that uses the same chopping sequence to both chop and anti-chop. An asymmetric cipher uses one key to encrypt and another to decrypt. I similarly define an asymmetric chopper as one that uses one sequence p to chop and another signal q to anti-chop. The necessary conditions are p*q = 1 so that we can recover the desired linear component, and p!=q because that’s the trivial case of the symmetric chopper.

We must remove constraint p in {-1,+1 }, because otherwise when p=-1, q=-1 and when p=+1, q=+1 to meet the constraint that p * q=1. We have to reject this trivial case because p=q is not an asymmetric chopper–it is identical to the symmetrical chopper but we have introduced the redundant variable q to describe it.

To recap, we’ve found that we can’t make a chopper with the property p^4=1 and have it improve IM3. The reason for this is that a p^3 term appears due to the IM3 of the circuit (which we are trying to linearize) and our symmetric anti-chopper multiplied again by p to form p^4.

Asymmetric Chopping

However, what if we consider the asymmetric chopper. Then, our output y will be:

y = a*p*x + b*p^2*x^2 + c*p^3*x^3
hat y = a*p*q*x + b*p^2*q*x^2 + c*p^3*p*x^3

which, using the relation p * q=1:

hat y = a*x + b*p * x^2 + c * p^2 * x^3

So, we now want a system where p^2 is a broadband (or out-of-band) signal. How do we generate such a signal? Well, let’s consider the 3-level case. We can consider p in {-1, 0, +1 }, but we have to reject it because then p*q!=1 when p=0. In other words, we can’t have p=0 because then we can’t recover our signal. [In actuality, there may be a way to do exactly this, but I’ll leave that option for a future post. I still have to work out the details.]

So, let’s now consider the case where p in {r, s} and r < s. [This case has the property that the dc value of p is non-zero, (:p:)!=0. We’ll set that fact aside for now.] Let’s call the associated values of q as q in {t, u }. What does this look like in the frequency domain? Well, we can express r and s as:

r = (r+s)/2 + (r-s)/2
s = (r+s)/2 - (r-s)/2

in other words:

p = frac{r+s}{2} +- frac{r-s}{2}

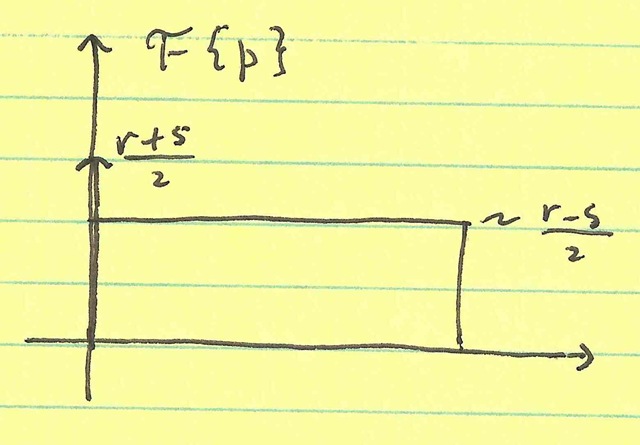

which means that p has a dc value of frac{r+s}{2} plus a broadband/out-of-band component frac{r-s}{2}:

In addition, the average power of p is frac{r^2+s^2}{2}. Since it’s pointless to ascribe any gain or loss to the chopping function (since this can be mathematically ascribed to the gain coefficients a, b, c of y), we can without loss of generality constrain the average power of p to be 1:

frac{r^2+s^2}{2} = 1

So, for example, if r = 0.1, then s = sqrt{1.99}.

Recall our result of asymmetric chopping:

hat y = a*x + b*p*x^2 + c*p^2*x^3

So, the fundamental question is what does p^2 look like? Well, if p in {r,s }, then p^2 in {r^2, s^2 }. This can be represented as:

p^2 = frac{r^2 + s^2}{2} +- frac{r^2 - s^2}{2} = 1 +- frac{r^2 - s^2}{2}

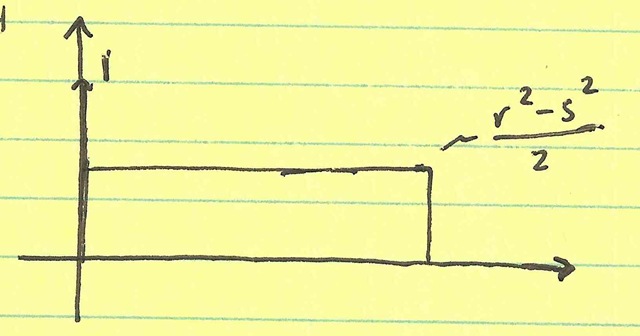

So, unfortunately, p^2 has a dc value of 1 and a broadband/modulated component:


As a result, asymmetric chopping cannot really suppress the IM3 term.

Even more anti-reasons

From the derivation above, I don’t believe that allowing p to have more than two possible values will help. For exammple:

p in { frac{3}{ sqrt{50}}, frac{4}{ sqrt{50}}, frac{5}{ sqrt{50}} }

Since Cannot render equation. Use Firefox instead.p^2 < 0[/amath], the average value of p^2 will always be non-zero, and therefore there will always be some IM3 term blowing through.

Even if asymmetric chopping did fix the IM3 problem, there are practical difficulties with the system: for one, the chopper is no longer a switch-mode mixer (it is no longer selectively negating its input). As a result, one would have to worry about the linearity of the chopper itself. The same applies to the anti-chopper. (Although in an ADC or in a DAC, one would be able to implement one of the chopper/anti-chopper digitally and avoid one of them.)

If time avails, I will pursue the case of allowing p=0 some more and share my ideas on the subject in a separate post. In the meantime, your ideas and concerns are welcome. Consider the comment bubble to the lower right. Also, consider a subscription by email or RSS.

This entry was posted in Analog Professional and tagged , , , , . Bookmark the permalink. Post a comment or leave a trackback: Trackback URL.


  1. Posted July 6, 2009 at 9:27 pm | Permalink

    We just published a conference paper on the novel idea of chopping in frequency rather than time to improve IM3. The idea is that you have a two-tone signal where only one tone at a time is selected; therefore, only one tone is presented to the system at a time. The selection rate is much faster than the beat frequency, so the original signal is still passed through. The switched two-tone signal is passed through a presumably wideband nonlinear device. IM3 is not generated by the switched tone signal because only one tone at a time passes through the nonlinear device. The amplified signal is recovered at the output with a filter to remove all the switching aliases.

    2009 IEEE International Microwave Symposium
    WEPB-3 Low Distortion Amplification of Multisine Signals using a Time-Frequency Technique
    G. J. Mazzaro, K. G. Gard, M. B. Steer, North Carolina State University, Raleigh, United States
    A novel time-frequency technique is presented for reducing intermodulation distortion when a multisine signal is applied to a nonlinear radio-frequency amplifier. A fast periodic switch is used to apply only one spectral tone at a time to the nonlinear amplifier. A bandpass filter following the amplifier removes switching spurious signals, leaving only the linearly amplified multisine signal at the output. The technique is used to linearize the response of a broadband amplifier with a four-tone uniform phase input signal centered at 465 MHz. The technique yields a 14 dB improvement in intermodulation distortion in comparison to the response of the original four-tone signal at the same output power.

    • Posted March 18, 2010 at 10:10 pm | Permalink

      I finally got around to reading your paper, Kevin. Well done. Any way you can generalize it to something other than constant-amplitude tones?

  2. Lior Kravitz
    Posted March 8, 2009 at 7:49 am | Permalink

    Just a thoguht (didn’t go through the math long enough)- what if I remove the requirement for “real” mixing, and allow quadrature? I think this approach may have some merit, like in using p={j, 1}, and then p^2={-1, 1}.
    This may not be immediately practical, but as part of a quadratrure system this might make sense.

    • Posted March 10, 2009 at 4:39 pm | Permalink

      Hi, Lior.

      I like the way you think! Indeed, I have to work out the math. The important thing is that the nonlinearity of the circuit operates on real values only (it can be seen as a vector with the components being nonlinear, not the entire vector). However, thing might still work out, in that the chopper/”anti-chopper” could be complex-valued.

  3. Posted January 27, 2009 at 9:30 pm | Permalink

    The idea of chopping and its relationship to intermodulation distortion is an interesting topic. We are making some interesting progress on a related topic. We have a paper accepted for presentation at IMS2009 on time multiplexed sinusoidal signals to reduce IM3. Time multiplexing uses +1 and 0 switching, but +1,0 and -1 could possibly be used although we have only studied the theory of +1 0 switching.

    • Posted January 28, 2009 at 7:44 pm | Permalink

      I eluded to a configuration that had a {0,1} set. What I intended was to have two sets of mixers/lineups and essentially interleave between them. However, I can’t seem to get around the issue that no matter what p^2 has a dc term which allows the IM3 through.

      Hopefully, you’ve found a way around it. I look forward to seeing your idea.
