Fundamentals of Analog/RF design: Noise, Signal, Power

Analog design does not scale the way digital design does. Namely, as process shrinks, one does not immediately benefit by having reduced power consumption for the same performance. I will show in this post the main constraint involved in analog/RF design: that to maintain a given SNR, a certain amount of power must be consumed by an analog/RF circuit.

Transconductors

MOS Thermal Noise

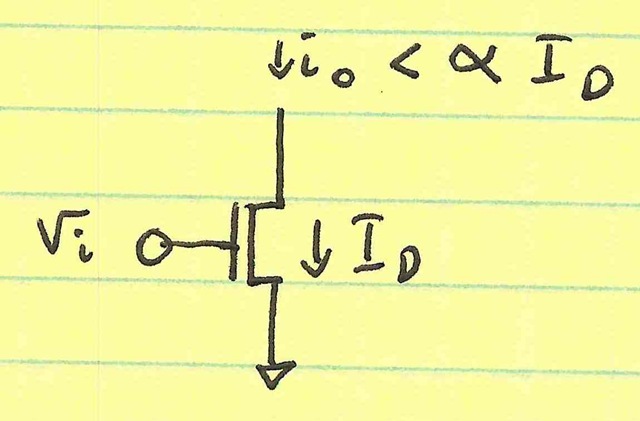

Shown below is a disembodied MOS transconductor:

scan0085a

It takes an input voltage vi and outputs a current io. To avoid clipping, io would need to be less than ID, the bias voltage on the MOS transistor. However, let’s say that for some linearity requirement (IM2, IM3, IM5, etc.) that we limit io to be less than α×ID.

So, we know the signal power is:

Psig = (α×ID)2 = α^2×ID^2

This power is computed as a current; we could equally have the transconductor drive a specified load impedance and compute all the quantities as voltage, but they will not change the end result.

Likewise, the noise current power is:

Pnoise = 8×k×T×gm×B/3

At this point, it is useful to represent gm in terms of voltage and current:

gm = 2×ID/VDSat
→ Pnoise = 16×k×T×ID×B/(3×VDSat)

Therefore:

SNR = Psig/Pnoise = 3×α^2×ID×VDSat/(16×k×T×B)

Note that the term ID×VDSat is a lower-bound on the power dissipated across the FET. In fact, the actual power dissipated across the FET is ID×VDS, which is actually greater than ID×VDSat, since VDS > VDS to keep the FET in saturation.

To summarize:

  1. For a given SNR, we need a certain ID×VDSat product (Pmin)
  2. The actual power dissipated by the FET is greater than this ID×VDSat product Pmin
  3. Therefore, the SNR dictates how much power we must dissipate

BJT Noise

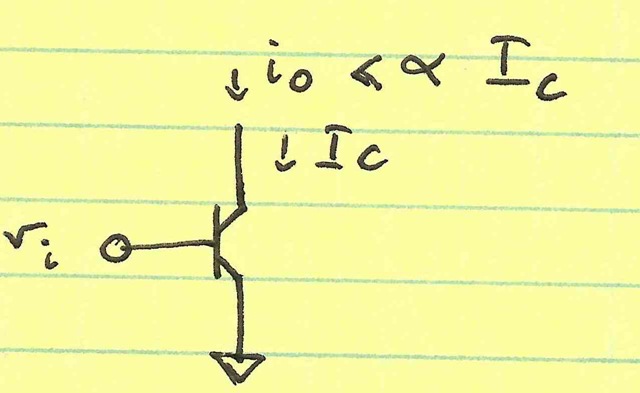

A similar argument holds for the BJT.  The difference is that the BJT’s are less sensitive to voltage, since due to their exponential current-voltage curve, the voltage varies very little:

scan0083a

Pnoise = 2×k×T×B×IC/Vt

Psig = α^2×IC^2

SNR = α^2×IC×Vt/(2×k×T×B)

Once again, this IC×Vt is a lower-bound on the noise dissipated across the BJT: VBE > Vt and VCE > VBE → VCE > Vt. The true power dissipated across the BJT is IC×VCE which is greater than Pmin = IC×Vt, and to maintain a certain SNR, we have Pmin = SNR×k×T×B/(α^2).

Loads

Resistor Noise

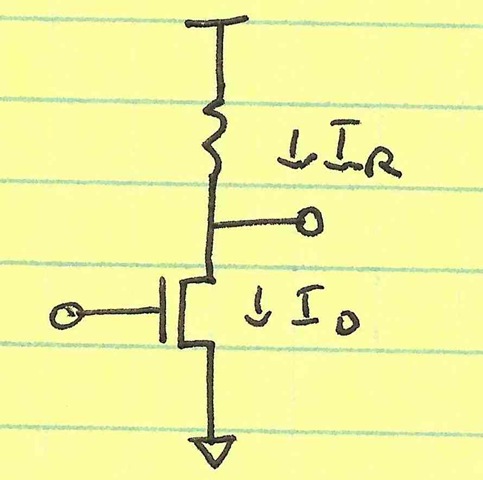

We now veer off into load country, considering resistor loads for our transconductor:

scan0084a

Considering only noise due to the resistor, and making the assumption that the signal current is once again limited to α×ID (where ID = IR):

Pnoise = 4×k×T×B/R = 4×k×T×B×IR/VR

SNR = α^2×IR×VR/(4×k&Times;T×B)

Note that this case is not general: in many cases, we don’t have to have IR = ID, so the Psig has nothing to do with the resistor current. My intent is not to generalize to that much degree. I assume we have a transconductor–and every transconductor has to have a load (resistive, inductive, or active) that supplies dc current.

Active Loads

Going through the math, one finds that active loads (BJT or MOS) also follow a similar derivation: the noise contributed by the load is proportional to the current to minimum-voltage ratio of the load. Also, the signal current coming into the load is constrained by the load current, since that same load current flows through the transconductor:

MOS Load: Pnoise = 16×k×T×ID×B/(3×VDSat) | Psig = α^2×ID

BJT Load: Pnoise = 2×k×T×B×IC/Vt | Psig = α^2×IC

Final Note

One final note: many times circuit designers think that they need to maximize gm of devices to minimize noise. This optimum is not always the case. Generally, for a transconductor, better gm yields better SNR (assuming linearity is not an issue). However, the gm of a load makes it add more (current) noise without improving signal power. Therefore, for loads, one wants to minimize gm.
