I received a request to go through the design of a flip-flop. Every flip-flop I have designed has been a master-slave D flip-flop, built out of two D latches. I’ll start with a basic CMOS latch and go into more optimized latch topologies.

Update 2008-12-19

This post probably didn’t make sense to many of you. I was representing C-bar (negation of C) by and underline. Unfortunately, WordPress (or maybe my theme) wasn’t rendering this underline, so $$overline{C}$$ didn’t look any different from $$C$$. I’ve (obviously) rectified this ambiguity through the magic of Latex. If there are any errors now, they are solely my fault. (Let me know.)

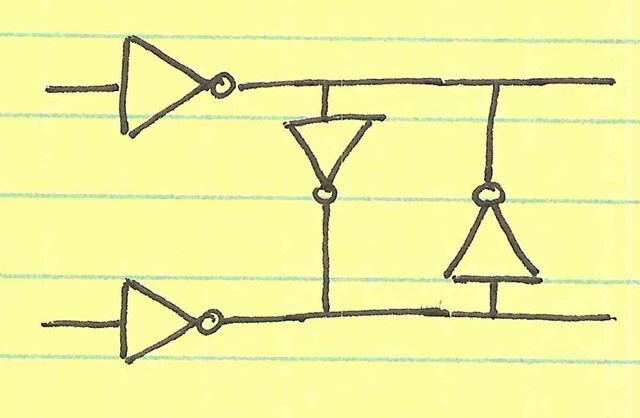

Consider the cross-coupled inverters shown below:

scan0113a

The two inverters chasing their tail to the right of the input inverters represent a memory unit (i.e. a latch). When one output is high the other one is forced low. This low output then reinforces the first output being high. These two inverters form a positive feedback system.

I will represent almost all circuits as fully differential. That is generally how I’ve encountered these structures, and it also more general. If one wants a single-ended version, simply lop off one of the input structures (but keep the cross-coupled inverters).

This system has two stable states: the top output high (at supply) and the bottom output low (at ground) or vice versa. One additional trait of these cross-coupled inverters is that it takes a bit of effort to flip them from one state to the other. One must essentially cause the top output to go from high to low by overcoming the inverter driving the top output. In other words, the input inverters (on the left) must be sized larger than the cross-coupled inverters.

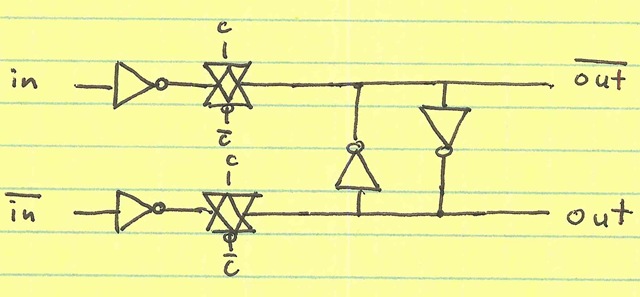

Our desire, however, is not to have the state change at random. We want the latch state to change only upon the transition of an external clock. This can easily be accomplished by passing the input inverter’s output through a transmission gate controlled by the clocks $$C$$ and $$overline{C}$$.

scan0113b

Now, we have a true latch. I won’t repeat Wikipedia in analyzing a flip-flop as two successive latches triggered on opposite phases of the clock signal.

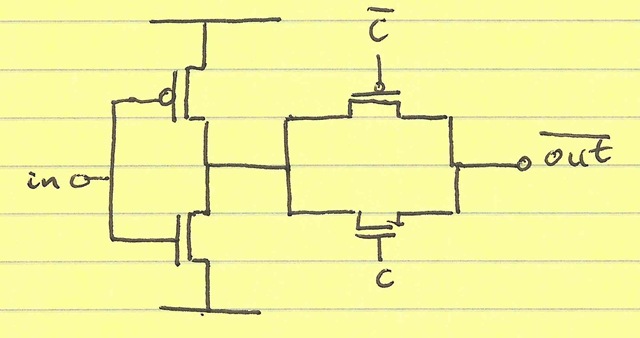

Now, let’s look closer at the inverter and T-gate combination in more detail:

scan0114a

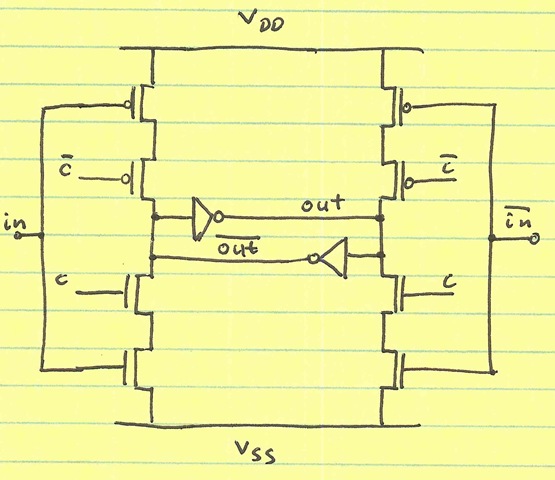

The PMOS controlled by $$overline{C}$$ does very little when the output of the inverter is low. It is basically there for pull up. Similarly, when the inverter output is high, the NMOS controlled by $$C$$ does very little; it is basically there to pull $$overline{out}$$ low. As a result, we can lose the connections between the PMOS and NMOS in the T-gate and incorporate the T-gate into the inverter:

scan0113c

This structure has the advantage of allowing an contactless diffusion between the series PMOS devices and another contactless diffusion between the series NMOS devices, as I illustrated in the MOS diffusion parasitics article.

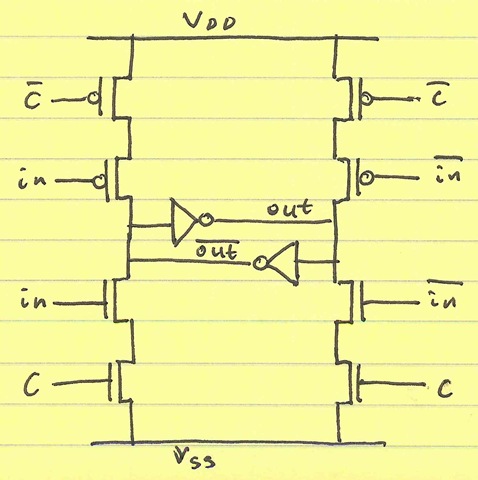

Another manipulation we can perform on this structure is to reverse the roles of input gates and clock gates (switching the connections of $$in$$/$$overline{in}$$ and $$C$$/$$overline{C}$$):

scan0115b

Note that while both PMOS clock devices (driven by $$overline{C}$$) are turned on, only one is actively pulling up an output. For example, the PMOS devices on the left pulls $$overline{out}$$ up when $$in$$ is low. However, the upper right PMOS device (driven by $$overline{C}$$) does nothing because the PMOS in series with it is off ($$overline{in}$$ is high).

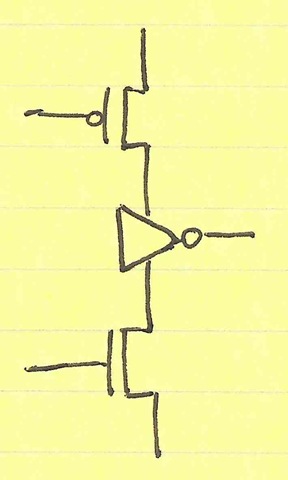

I will draw this structure as a gated inverter in the future:

scan0116a

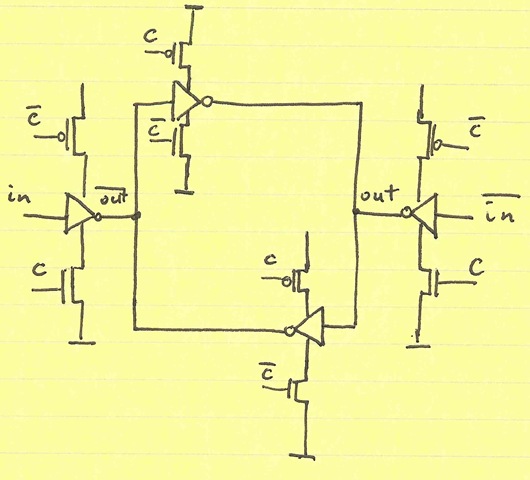

Up to this point, the input structure has always had to fight the memory effect of the cross-coupled inverters. Essentially, the input structure must inject enough current into the cross-coupled inverters to force them to switch states. This contention can result in considerable power draw. This power draw can be alleviated by gating the cross-coupled inverters (enabled on the opposite phase than that of the input structures):

scan0117b

Finally, the PMOS clock devices  can be combined into one device; and the NMOS clock devices (driven by $$C$$) can be combined into one device. I have omitted the cross-coupled inverter devices for brevity:

scan0114b

Doing so has the benefit the PMOS clock device can be twice as large while maintaining the same capacitive load on $$overline{C}$$. Similarly, the NMOS clock signal $$C$$ can see the sum of the device widths from the previous configuration yet whichever NMOS is on ($$in$$ or $$overline{in}$$) is now in series with a device twice as wide.

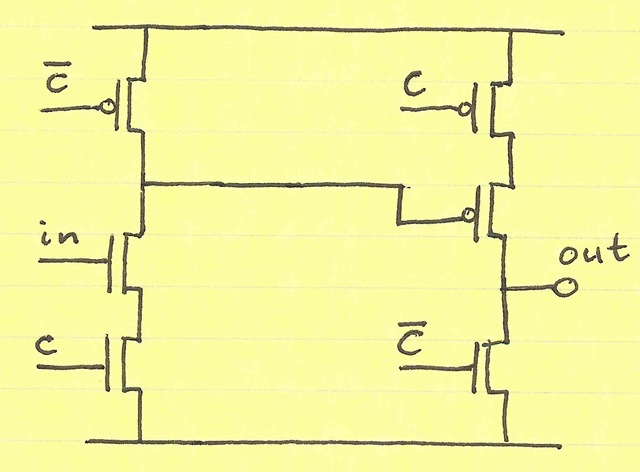

Finally, one can omit some level of gating by pre-charging the latch. That is, instead of waiting for the input to determine whether we pull the output high or not, we pull the output high during the first half of every cycle. During the second half, we pull down only if the input should really be low. The following flip-flop structure achieves this pre-charging. Once again, I have omitted the cross-coupled structures:

scan0117a

The first stage’s PMOS pulls up whenever $$overline{C}$$ is low on every cycle. Then, on the next half-cycle (when $$C$$ is high) the NMOS pulls down only when $$in$$ is high. Since the first stage only has one PMOS device (rather than two in series), the pull-up action is faster. Since we want to clock the second latch stage on the opposite phase (to form a full flip-flop), we need to invert the pre-charge and pre-charge low (rather than high).

The main problem with the pre-charge architecture as shown is that the first stage (for example) pulls up on every cycle even when the input $$in$$ is always high (and the output should be low). This represent a great deal of charging and discharging on the output of the first stage and thus dissipates power. However, this represents a fundamental trade-off: that one can gain increased speed at the expense of power.
